Produktdetails:
|
| Sitz: | Keramik, TC, SIC | Federmaterial: | mit einer Breite von nicht mehr als 20 mm |
|---|---|---|---|
| Qualitätskontrolle: | 100% Kontrolle | Flüssige Kompatibilität: | Wasser, Öl, milde Chemikalien |
| Herkunftsland: | aus China | Modell: | M3N/101/M2N |

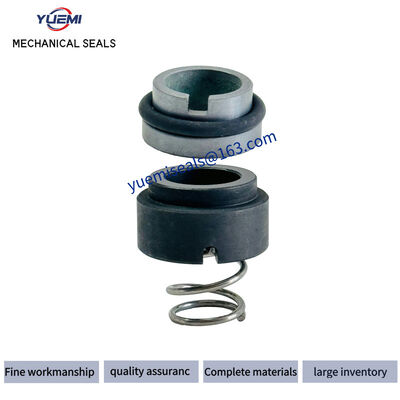

| Schlüsselwort: | Mechanische Dichtung | Standard oder Nichtstandard: | Standard |
| Lager: | Wasserpumpenlager | ||
| Hervorheben: | Mechanische Dichtung der Wärmeölpumpe,M3N/101/M2N mechanische Dichtung,M3N mechanische Dichtung |
||
| d1 | d3 | d6 | d7 | d8 | d11 | d12 | db | db | Ich...31) | Ich...5 | Ich...6 | Ich...7 | Ich...8 | Ich...10 | Ich...12 | Ich...14 | Ich...15 | Ich...16 | Ich...18 | Ich...19 | Ich...211) | Ich...28 | b | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 15 | - | - | - | 11.8 | 16.0 | 8 | - | - | - | - | - | - | - | 6.5 | 5.6 | 1.2 | 3.8 | - | - | 10.9 | - | - | 1.2 |
| 8 | 18 | - | - | - | 15.5 | 19.2 | 11 | - | - | - | - | - | - | - | 8.0 | 7.0 | 1.2 | 3.8 | - | - | 15.5 | - | - | 1.2 |
| 10 | 20 | 17 | 21 | 3 | 15.5 | 19.2 | 13 | 40 | 17.5 | 1.5 | 4 | 8.5 | 17.5 | 7.5 | 7.5 | 6.6 | 1.2 | 3.8 | - | - | 15.9 | 6.6 | 8 | 1.2 |
| 12 | 22 | 19 | 23 | 3 | 17.5 | 21.6 | 16 | 40 | 17.5 | 1.5 | 4 | 8.5 | 17.5 | 7.5 | 8.0 | 7.0 | 1.2 | 3.8 | - | - | 16.0 | 6.6 | 8 | 1.2 |
| 14 | 25 | 21 | 25 | 3 | 20.5 | 24.6 | 18 | 40 | 17.5 | 1.5 | 4 | 8.5 | 17.5 | 7.5 | 8.0 | 7.0 | 1.2 | 3.8 | - | - | 16.0 | 6.6 | 8 | 1.2 |
| 15 | 27 | - | - | - | 20.5 | 24.6 | 19 | - | - | - | - | - | - | - | 7.5 | 6.6 | 1.2 | 3.8 | - | - | 17.4 | - | - | 1.2 |
| 16 | 27 | 23 | 27 | 3 | 22.0 | 28.0 | 21 | 40 | 19.5 | 1.5 | 4 | 8.5 | 17.5 | 7.5 | 8.5 | 7.5 | 1.5 | 5.0 | - | - | 19.0 | 6.6 | 8 | 1.5 |
| 18 | 30 | 27 | 33 | 3 | 24.0 | 30.0 | 23 | 45 | 20.5 | 2.0 | 5 | 9.0 | 19.5 | 8.5 | 9.0 | 8.0 | 1.5 | 5.0 | 15 | 7 | 20.5 | 7.5 | 8 | 1.5 |
| 20 | 32 | 29 | 35 | 3 | 29.5 | 35.0 | 26 | 45 | 22.0 | 2.0 | 5 | 9.0 | 19.5 | 8.5 | 8.5 | 7.5 | 1.5 | 5.0 | 15 | 7 | 22.0 | 7.5 | 8 | 1.5 |
| 22 | 35 | 31 | 37 | 3 | 29.5 | 35.0 | 28 | 45 | 23.5 | 2.0 | 5 | 9.0 | 19.5 | 8.5 | 8.5 | 7.5 | 1.5 | 5.0 | 15 | 7 | 23.5 | 7.5 | 8 | 1.5 |
| 24 | 38 | 33 | 39 | 3 | 32.0 | 38.0 | 30 | 50 | 25.0 | 2.0 | 5 | 9.0 | 19.5 | 8.5 | 8.5 | 7.5 | 1.5 | 5.0 | 15 | 7 | 25.0 | 7.5 | 8 | 1.5 |
| 25 | 40 | 34 | 40 | 3 | 32.0 | 38.0 | 31 | 50 | 26.5 | 2.0 | 5 | 9.0 | 19.5 | 8.5 | 8.5 | 7.5 | 1.5 | 5.0 | 15 | 7 | 26.5 | 7.5 | 8 | 1.5 |
| 26 | 41 | - | - | - | 34.0 | 40.0 | 32 | - | - | - | - | - | - | - | 9.0 | 8.0 | 1.5 | 5.0 | - | - | 26.5 | - | - | 1.5 |
| 28 | 43 | 37 | 43 | 3 | 36.0 | 42.0 | 35 | 50 | 26.5 | 2.0 | 5 | 9.0 | 19.5 | 8.5 | 10.0 | 9.0 | 1.5 | 5.0 | 15 | 7 | 26.5 | 7.5 | 8 | 1.5 |
| 30 | 47 | - | - | - | 39.2 | 45.0 | 37 | - | - | - | - | - | - | - | 11.5 | 10.5 | 1.5 | 5.0 | 15 | 7 | 25.0 | - | - | 1.5 |
| 32 | 48 | - | - | - | 42.2 | 48.0 | 39 | - | - | - | - | - | - | - | 13.0 | 10.5 | 1.5 | 5.0 | 15 | 7 | 28.5 | - | - | 1.5 |
| 35 | 53 | - | - | - | 46.2 | 52.0 | 43 | - | - | - | - | - | - | - | 13.5 | 11.0 | 1.5 | 5.0 | 15 | 7 | 28.5 | - | - | 1.5 |
| 38 | 56 | - | - | - | 49.2 | 55.0 | 47 | - | - | - | - | - | - | - | 13.0 | 10.3 | 1.5 | 5.0 | 16 | 8 | 32.0 | - | - | 1.5 |
|
Leistungsfähigkeit
|
Kombination von Materialien
|
|
Temperatur: -20°C bis 180°C, abhängig vom O-Ringmaterial
|
Gesichtsbereich: Kohlenstoff, SiC, SIC
|
|
Druck: bis zu 10 bar (Unbalance-Typ)
|
Sitz: Keramik, SiC, SIC
|
|
Geschwindigkeit: bis zu 10 m/s
|
O-Ring:NBR,EPDM,FFKM,Alfas,FEP,
Kalrez, Chemraz, usw.
|
|
Endspiel-/Axial-Float-Zulassung: ± 0,1 mm
|
Feder: SS304, SS316,
|
|
Größe: 10 mm bis 80 mm
|
Teile aus Metall: SS304, SS316
|
